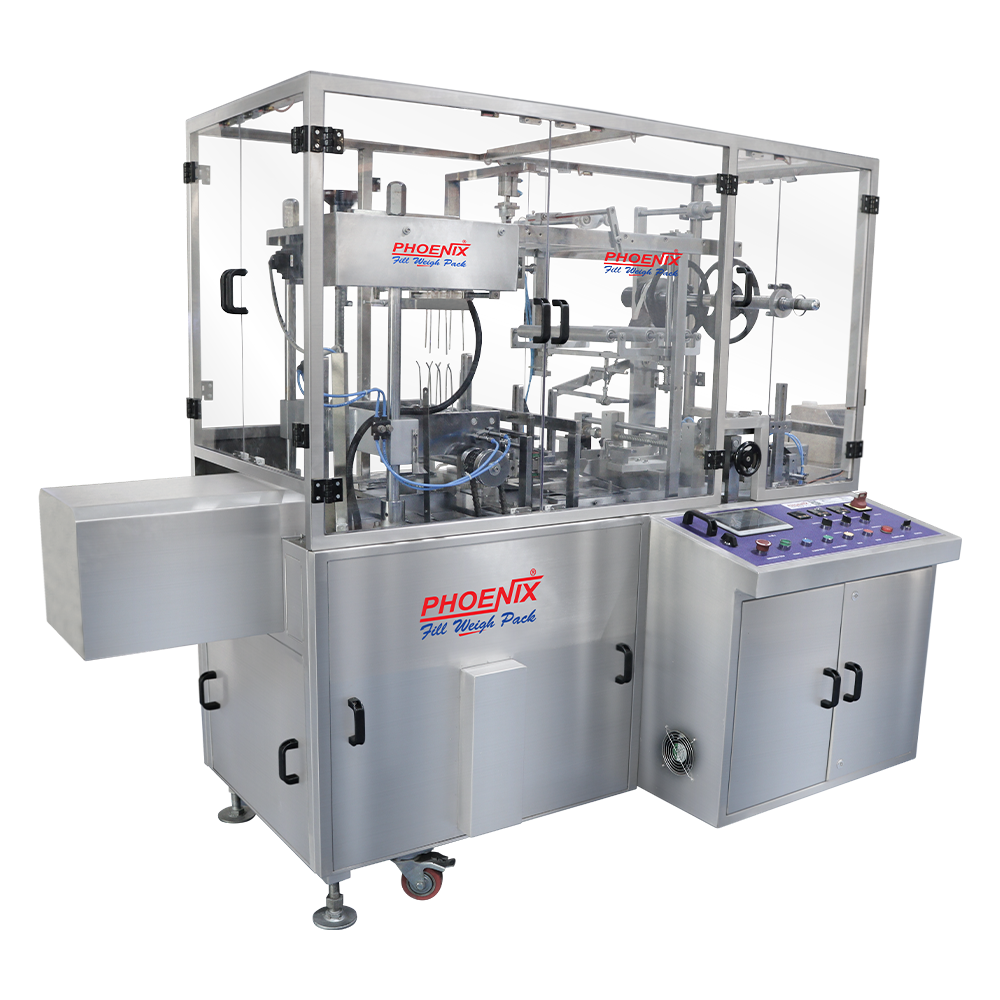

AUTOMATIC OVERWRAPPING MACHINE
- Power Input 2.5 KW III Phase
- Motor Flame Proof, 1.0 to 1.5 HP, 1500 RPM (approximately)
- Air Input 5 kg /cm2 (4 CFM) Dry Compressed Air.
- Type of Seal One side and two ends (total three (2) side seals)
- Packing Material Heat Treated Biaxial Oriented Polypropylene (B.O.P.P.) 20 to 40
- Film Size Thickness 25-30 microns
Suitable to Wrap Any size (change parts required)
Output Up to 2400 packs/hour (depending on the sizes of the carton/Product)
- Change over parts (Optional) Pusher plate, Fingers (Tuckers), Folders, Heater Body Plate, SS Heater Body Guides.
Ideal Output 20 up to 50 cartons/minute depending on the size of the carton
- Input Conveyor Endless Type made of Nylon
- Conveyor Drive Through the machine/separate depending on the size & weight of the cartons.
- Dimensions (Approx) 1750 mm (L) X 1200 mm (W) X 1500 mm (H)
