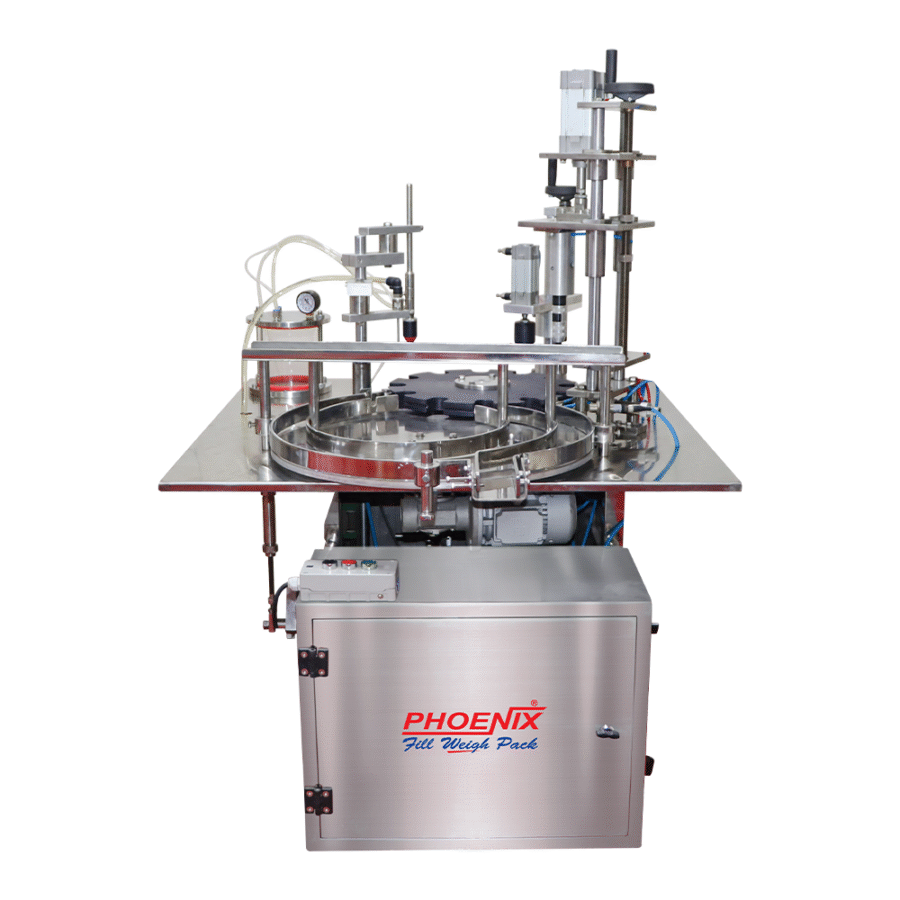

ROLL ON PERFUME FILLING LINE

Technical Specifications
Motor2HP
ConstructionSS304 Contact Parts
Filling Volume0-200ml (ideal range)
Filling Speed25-30 Bottles/min
Filling Accuracy0.1ml
Vacuum5.7Mpa
Power SupplyAC220V
Air required8CFM @ 6bar pressure



SHARE

Description

About:

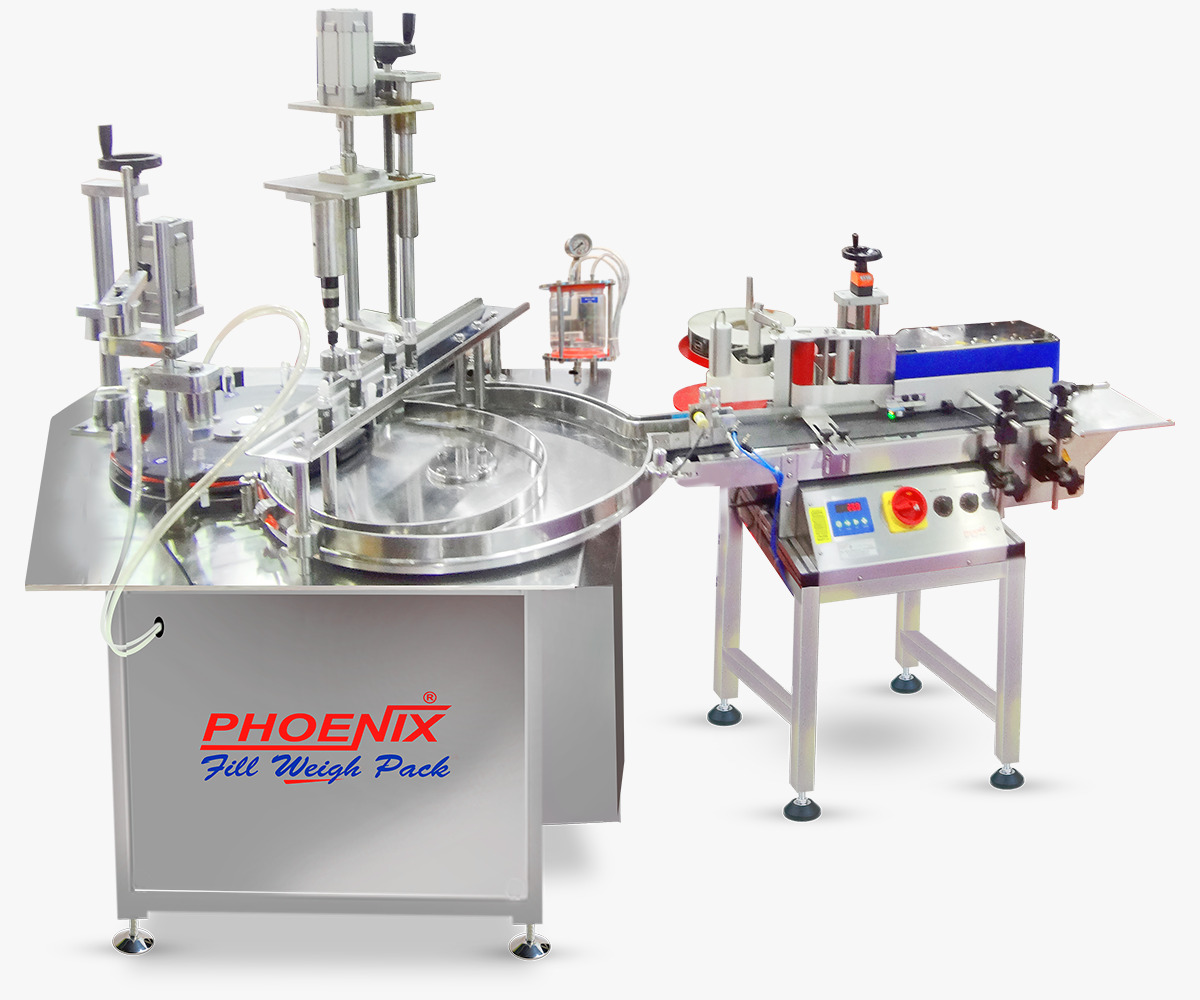

This machine is suitable for filling-plug pressing-capping-Labeling of roll-on perfume bottles. Application: Roll on perfume filling & Labeling machine is suitable for filling 5ml-100ml sizes of bottles. The design and configuration of this machine are compact and reasonable. Vacuum filling systems draw product into the container by using constant vacuum suction. When the product reaches the vacuum port, the excess product is drawn back into the collecting bottles. The fill level of the container is determined by the depth of the vacuum port within the neck of the container. Therefore the fill level will be the same regardless of the inconsistencies of the containers. The material of the collecting bottles is pharmaceutical grade, and the product in the bottles can be recycled. The number of the filling nozzles and the length of the conveyors can be custom-made according to your special requirement.
